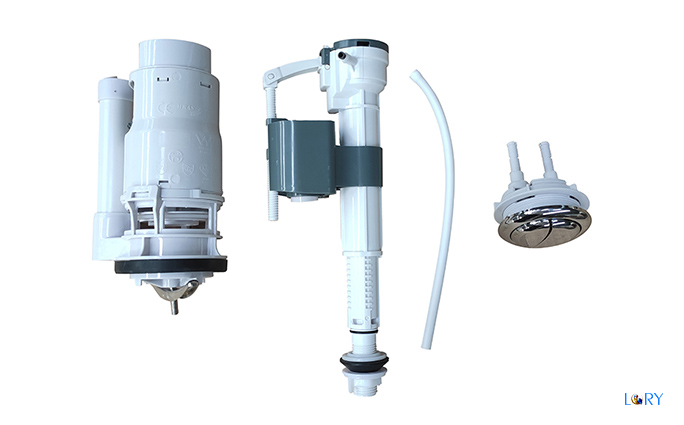

Toilet Water fittings are an indispensable and important accessory for our bathroom products. Maybe many customers do not have enough understanding of water fittings when purchasing, so today we, as a professional toilet manufacturing company, will explain toilet flush accessories to you in detail about water fittings product knowledge.?
Table of contents
1. button
2. Drain valve
3. Inlet valve
1. button

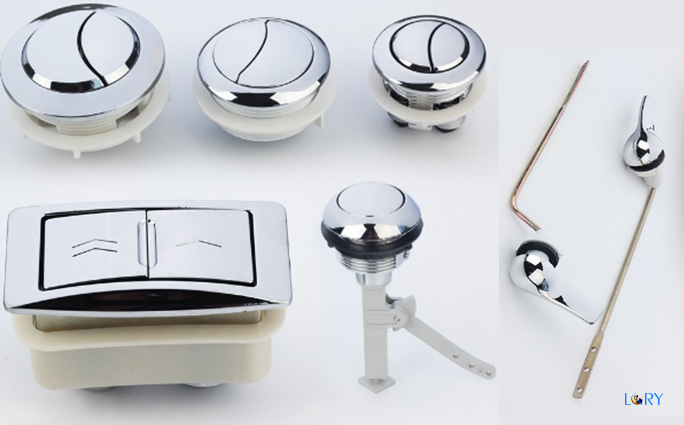

The buttons of the toilet are divided into top press, side press and front pull in terms of usage.
In terms of shape, there are round, square, and oval buttons, and the most used ones on the market are round buttons.
There are three sizes of round buttons, which are 40mm/50mm/60mm, and most of them are 40mm for export.
2. Drain valve
Obviously, the drain valve is used to control drainage, and it is divided into two types: single flush and double flush.
The single-flush drain valve is generally used in conjunction with the front pull, side panel or side-press button. It is pulled upwards through the chain device, and slowly falls under the action of buoyancy to complete a flushing cycle. The double-flush drain valve is divided into two buttons, which control different flushing volumes respectively. There are buttons in the drain valve to control the amount of water. In terms of water saving, this setting will be liked by more customers.
The caliber of the drain valve is also different. From the perspective of ceramics, the caliber of a standard drain valve is 65mm or 81mm, so pay special attention to the caliber of the drain valve when configuring water parts for the toilet.
In addition, the height of the drainage, which we call the base, also has different sizes, such as 18cm/20cm/24cm/28cm, which should be selected according to the height of the water tank.

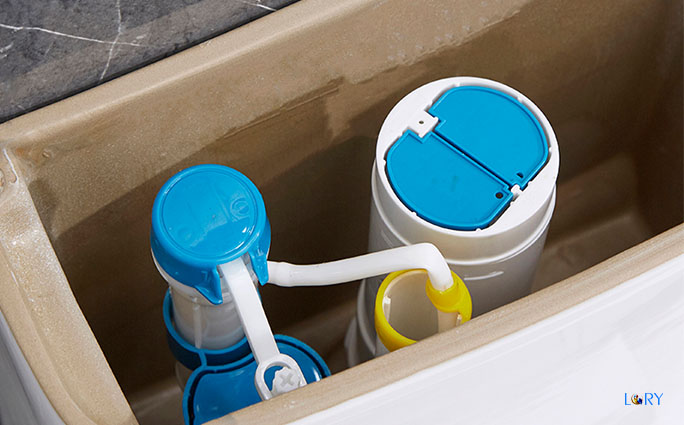

The other part of the base is the overflow pipe. The overflow pipe has two main functions in the water fittings.
The first one is that if the water valve of the toilet is broken and the water cannot be discharged in time, the excess water will flow from it. It drains from the overflow pipe and then out of the toilet, which can effectively prevent the water from flowing out of the tank.
The second function is that the water supply valve has a water replenishment pipe, which can replenish water into the overflow pipe. When the height of the water seal does not meet the requirements, it will automatically replenish water.
3. Inlet valve
The device for controlling the automatic water inlet of the toilet water tank, when the water level of the water tank is lower than a certain water level, the water inlet valve flows into the water tank until the water level in the water tank rises to a certain water level, the water inlet valve stops the water. At present, the water inlet valve is mainly a pressure difference type water inlet valve, and the early stage is a piston type water inlet valve. The function of the water inlet valve is to adjust the water intake and regulate the water inlet pressure.
Conclusion
The above is a detailed introduction about toilet water parts. Our LORY factory mainly produces ceramic solutions with high quality and low price, which are sold all over the world, mainly including one-piece toilets, split toilets, wall-hung toilets, squat toilets, urinals, and counter Basins, pedestal basins, etc., if you need, please feel free to consult us.
